Drone & UAV mapping

Ground control that costs less than your drone

Set your own base, log raw observations, and post-process the flight yourself. No per-project PPK fees, no rented receiver, no waiting on a CORS station that does not cover your site.

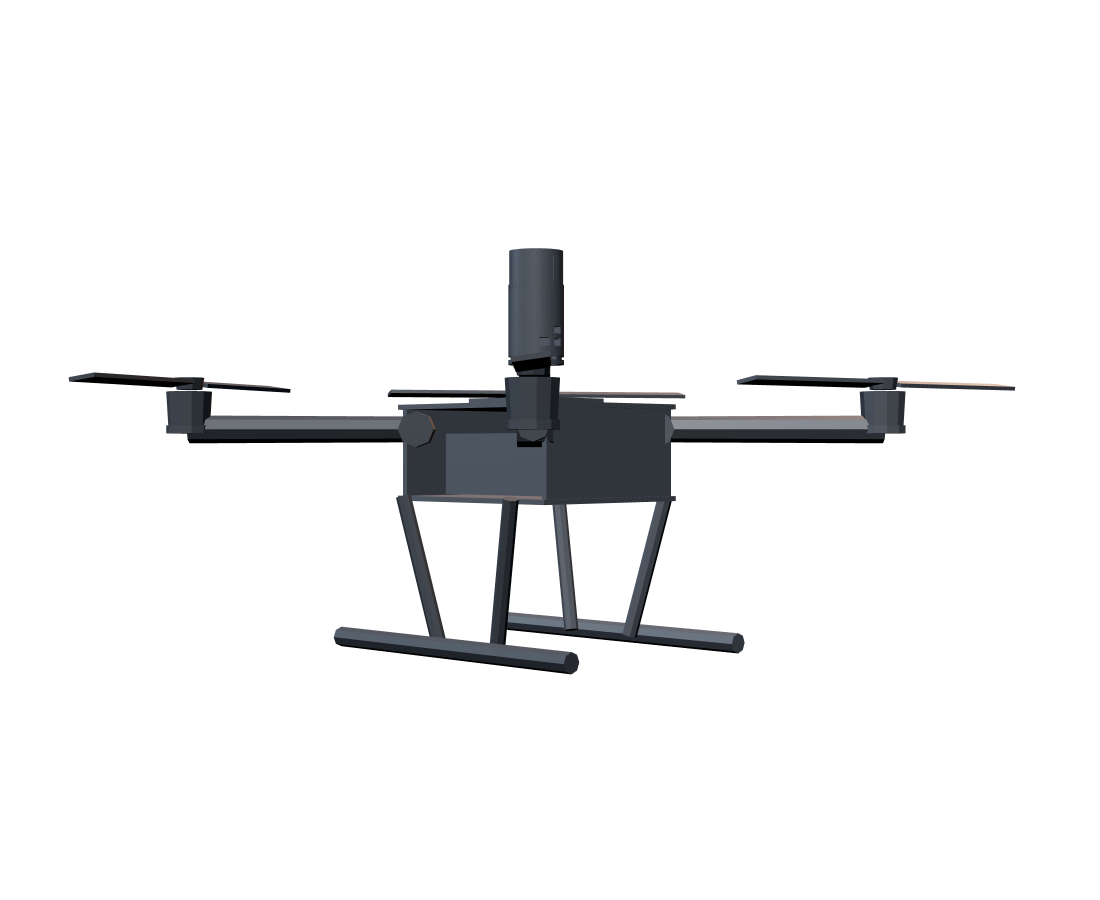

The Aerom module mounted on a survey drone: quadcopter airframe carrying the receiver, gateway and antenna stack.

The problem

Your day today

Laying GCPs eats the day

Half a flying day spent walking targets across a site, and the accuracy still depends on how well you measured them.

Renting a base, every project

Rental and per-project PPK service fees quietly become one of your biggest line items on repeat work.

CORS coverage runs out

The moment you fly outside a covered city, network corrections stop being an option and you need your own base.

The workflow

How the job runs with Aerom

  1. Set the base

    Over a known point, or averaged in fix. The base logs raw observations for the whole flight.

  2. Fly

    Corrections over NTRIP to your drone for RTK, or just log and go for PPK. Both work.

  3. Post-process

    Drop the flight log and the base log into Aerom Studio. Fix, float and single are labelled plainly.

  4. Export

    Geotagged image list, RINEX, or a corrected CSV — into Pix4D, Agisoft, WebODM or your own pipeline.

  5. Check

    A quality report you can hand to a client, showing what was fixed and what was not.

Skip ahead — get the price sheet One email, same working day.

What you get

Built around this job, not a generic feature list

RTCM3 corrections out

Feed any RTK-capable drone or third-party rover.

Raw logging for PPK

Full-rate raw observations for the whole session, no separate licence.

NTRIP caster + client

Use a network correction service, or be one for your own crew.

RINEX + geotag CSV export

Formats your photogrammetry software already reads.

Works away from coverage

A base you own works where no CORS station reaches.

One base, several rovers

Share corrections across a crew instead of buying receivers each.

Specifications

The numbers that matter here

The full specification sheet goes out with the price sheet — these are the lines that decide this particular job.

Receiver
u-blox ZED-X20P, all-band multi-constellation
Demonstrated RTK
~1 cm horizontal on our own hardware
Corrections out
RTCM3 over NTRIP, serial or Wi-Fi
Raw logging
For PPK post-processing in Aerom Studio
Export
RINEX, geotag CSV, corrected point CSV
Base setup
Known point or averaged-in fix, with ARP datum marker

Comparison

How Aerom stacks up for drone & uav mapping

Accuracy is broadly the same across this market. We have put the differences that actually decide a purchase side by side, including the one where we currently lose.

CriterionTrimble / LeicaPremium incumbentCHC / Hi-TargetVolume leaderEmlid Reach RS4DisruptorAeromUs
Horizontal RTK accuracy~8 mm + 1 ppm~8 mm + 1 ppm~7 mm + 1 ppm~1 cm demonstrated
Indicative India price₹15–25 L₹3–8 L~₹2 LOn request
Built in IndiaNoNoNoYes
SupportVia dealerVia dealerEmail, EU hoursDirect, in India
NavICPartialPartialNoOn the roadmap
Indian survey workflowsGenericWeakGenericBuilt for it
Tilt compensationYesYesYesRoadmap
Software subscriptionPaid, highBundled~₹21k / yrBundled + Pro tier

Accuracy is table stakes. Published RTK accuracy across this market sits around 7–8 mm + 1 ppm horizontal, and we do not claim to beat it. We claim you should not have to pay ₹20 lakh for it. Note also the tilt-compensation row — that one is not in our favour yet, and we would rather you read it here than discover it later.

Indicative Indian street prices and published specifications, verified August 2026. Prices move; ask us for current figures.

Buying & support

What you actually get, and what happens afterwards

The questions that decide a purchase are rarely about accuracy. They are about delivery, warranty and who picks up the phone at 4pm on a Thursday.

In the box

  • Aerom base station — receiver, gateway and ground-plane antenna
  • Survey tripod with levelling tribrach
  • Swappable battery module
  • Charger and cable set
  • Transport case
  • Calibration and antenna-offset record for your specific unit
Lead time
4–6 weeks from order during the pilot programme
Warranty
12 months against manufacturing defects
Service turnaround
Target 5 working days in-workshop, plus transit
Support hours
Monday to Saturday, 9am–7pm IST
How you reach us
Phone, WhatsApp and email — to us, not to a dealer
Training
Included: a live onboarding session for your crew, plus written and video guides in English and Hindi

Full warranty and service terms come with the quotation. Read them before you buy — from us or from anyone.

FAQ

Questions surveyors actually ask

Do I still need ground control points?

Fewer, and mostly as independent checks rather than as the thing your whole model is anchored to. With PPK or RTK the camera positions carry the geometry, so GCPs shift from being load-bearing to being verification. Most operators keep a handful of checkpoints and drop the rest.

Which drones does it work with?

Any drone that accepts RTCM3 corrections over NTRIP will work as an RTK rover. For PPK, Aerom logs raw observations independently, so it works alongside any drone that timestamps its images — the drone does not need to talk to us at all.

Can I use it without internet in the field?

Yes. That is the main reason to own a base. Set the base, log raw data, and post-process later. Network corrections are an option, not a requirement.

Is the accuracy good enough for photogrammetry?

RTK accuracy is comparable across the market — everyone lands around 7–8 mm + 1 ppm horizontal, and Aerom has demonstrated ~1 cm on its own hardware. In practice photogrammetric accuracy is limited by your flight plan, camera and overlap long before it is limited by the receiver.

What happens if it breaks on site?

You call or WhatsApp us directly — there is no dealer in between, which is the point. Support runs Monday to Saturday, 9am to 7pm IST. If the unit has to come in, we target five working days in the workshop plus transit. During the pilot programme we will also talk to you about a loan unit so a fault does not stop your job; ask us and we will tell you honestly what we can cover at your location.

What warranty do you offer?

Twelve months against manufacturing defects from the date of delivery, covering the receiver, gateway, antenna and battery module. Physical damage, water ingress beyond the rated conditions and unauthorised opening are not covered. Full terms come with the quotation — read them before you buy, from us or from anyone.

How long from order to delivery?

Four to six weeks during the pilot programme. We would rather quote a real date and hit it than quote two weeks and disappoint you. If you have a project deadline, tell us the date when you enquire and we will tell you straight away whether we can meet it.

Who trains my crew?

We do, directly. A live onboarding session for your team is included, plus written and video guides in English and Hindi. For institutional deployments we run a longer session and help you set standard project templates so every crew works to the same configuration.

What if I already use another brand's workflow?

Aerom exports the standard formats — RINEX, CSV, and the CAD and government deliverable formats — so it drops into an existing office workflow rather than replacing it. If your deliverable needs a format we do not yet write, tell us during the pilot; that feedback is exactly what the programme is for.

Can I see one before I commit?

Yes, and you should. We would rather you handled a unit and ran it against a control point you already know the answer to than took our word for anything on this website.
